R22
Low Acquisition and Operating Cost
Instructor friendly cyclic
Lycoming O-360 Engine

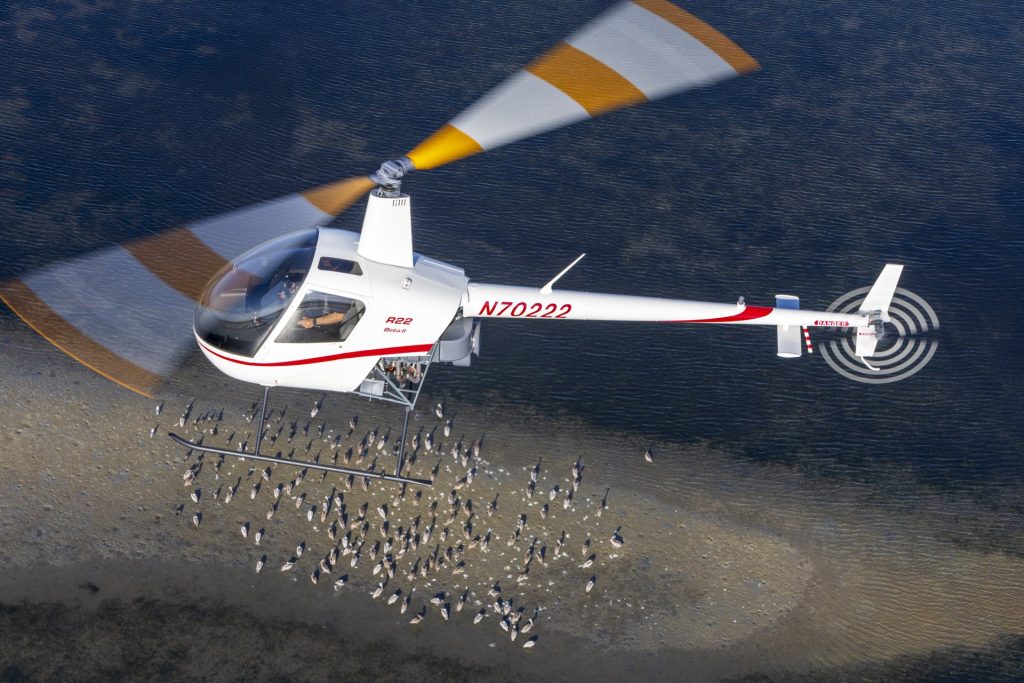

R22 BETA II

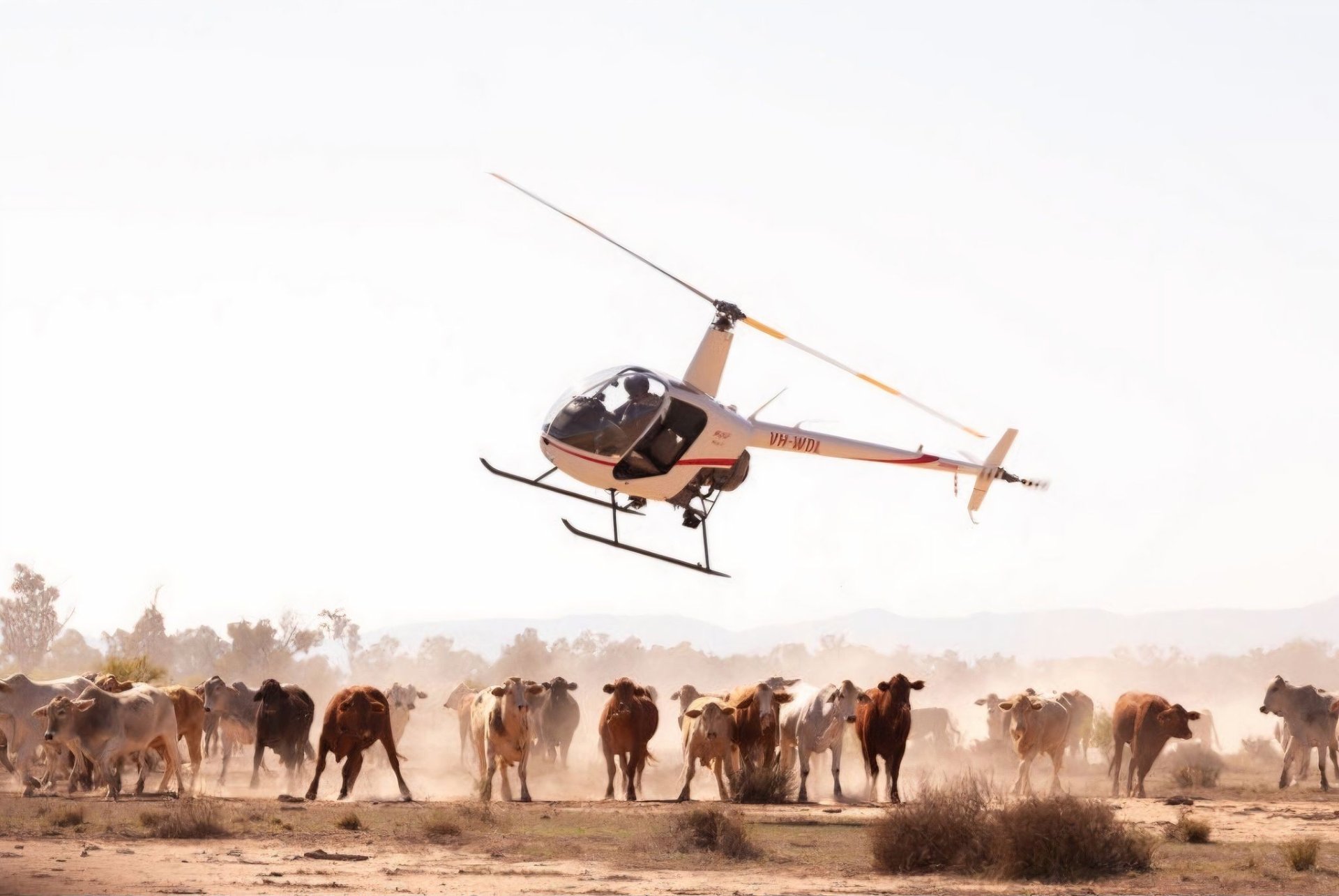

MODEST, BUT MIGHTY. A true workhorse, the two-seat R22 Beta II has garnered worldwide popularity for nearly 50 years due its versatility and affordability — perfect for everything from flight training to livestock management.
ABOUT THE R22 BETA II
Colossal performance in a compact package: The R22 features exceptional tail rotor authority for precise maneuvering. An aluminum monocoque and powder-coated steel tube structure provides a lightweight, yet robust airframe while the aerodynamic fuselage optimizes airspeed and fuel economy. The Lycoming’s proven O-360 engine is derated to provide reserve power and better performance at high altitudes and in hot weather. It comes with the Robinson’s signature Cyclic and efficient two-bladed rotor system, and a crashworthy fuel system. In other words: it’s anything but "Beta".
Instrument console

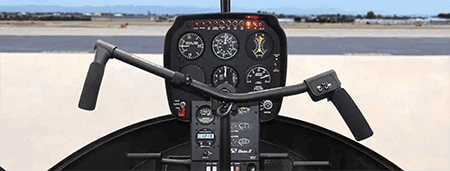

Standard 6-hole panel.

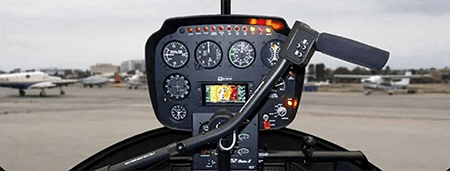

Options shown: Eight-hole panel, Garmin GTN 650Xi
and CDI GI-106B in upper panel, artificial horizon windshield-mount, vertical compass, Garmin GMA 350Hc audio panel in lower console, and pilot-side accessory bar.
SPECIFICATIONS
| ITEM | Beta II |
|---|---|
| Engine | Lycoming O-360, four cylinder, carbureted |
| Horsepower | Derated to 131 hp for takeoff and 124 continuous |
| Maximum Gross Weight | 1370 lb (622 kg) |
| Approximate Empty Weight (including oil & standard avionics) | 880 lb (399 kg) |
| Standard Fuel (16.9 gal) | 101 lb (46 kg) |
| Auxiliary Fuel (17.0 gal) | 102 lb (46 kg) |
| Pilot, Passengers, and Baggage (with maximum fuel) | 389 lb (176 kg) |
| Cruise Speed at Maximum Gross Weight | Up to 96 kts (178 km/h) |
| Maximum Range (no reserve) | Approximately 250 nm (460 km) |
| Hover Ceiling IGE at Maximum Gross Weight | 9400 ft |
| Hover Ceiling OGE at Maximum Gross Weight | 8000 ft |
| Maximum Operating Altitude | 14,000 ft |
| Electrical System | 14 volt |
